Rated Voltage 3.6/6kV and below, Coal-mining, Mobile Screen, Rubber Sheathed, Flame-retardant, Flexible Cable
|
Type： |
MYPT、MYP |
|
Main Specification： |
Number of Cores： 3、3+1Cores |
|
Rated Voltage： |
1.9/3.3kV、3.6/6kV |
|
Standard： |
MT 818.7-2009《Rated Voltage 3.6/6kV and below, Coal-mining, Mobile Screen, Rubber Sheathed, Flame-retardant, Flexible Cable》 |
|
Products Introduction： |
Products Introduction: Apply to connections between powers of the mobile coal-winning machine with rated voltage of 1.9/3.3kV, and connections between powers of mobile ground mining machine with rated voltage of 3.6/6kV.This type of product has the advantage of high reliability, which is widely used in mines. |
|

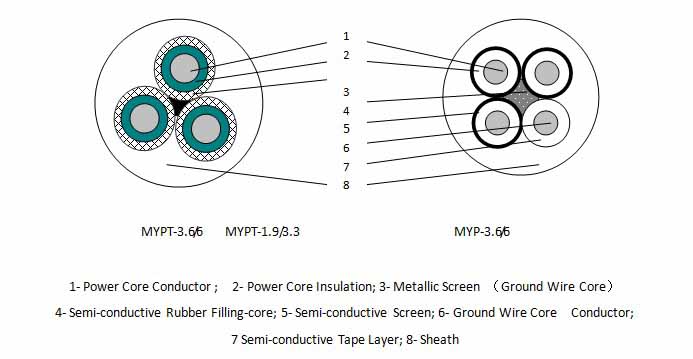

Cable Structure Drawing： |
|
