Type：

FND-H07BN4-F, HFD-H07BN4-F

Main Specification：

Number of Cores： 1Cores

Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、
25mm²、35mm²、50mm²、70mm²、95mm²、120mm²、
150mm²、185mm²、240mm²、300mm²、400mm²、500mm²

Number of Cores： 2Cores

Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、
25mm²、35mm²、50mm²、70mm²、95mm²、

Number of Cores： 3Cores

Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、
25mm²、35mm²、50mm²、70mm²、95mm²、120mm²、
150mm²、185mm²

Number of Cores： 4Cores

Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、
25mm²、35mm²、50mm²、70mm²、95mm²、120mm²、
150mm²

Number of Cores： 5Cores

Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、
25mm²、35mm²、50mm²、70mm²

Rated Voltage：

0.6kV/1kV

Standard：

Standard:GB/T 5013 Rubber Insulated Cable with the Rated Voltage Up to and Including 450/750V

Products Introduction：

Apply to power and control system with AC rated voltage up to and including 600/1000V，the wind power generation and various portable electrical equipment which require the performance of flexibility, bending, bearing great external mechanical forces, weather proof, anti-UV, anti-oil, anti-Ozone, seawater-resistance, salt-spray resistance, cold-resistance and flame retardant. The cable should have the characteristics of flexible and small bending radius.

 Cable Structure Drawing：

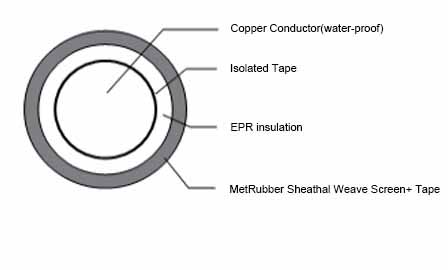

 1Cores

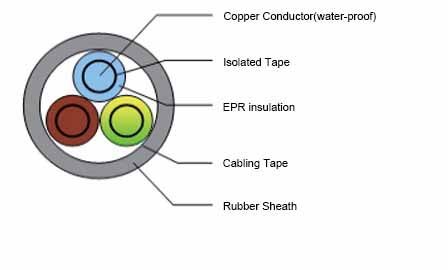

 3Cores

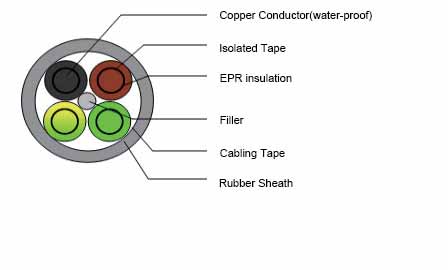

 4Cores

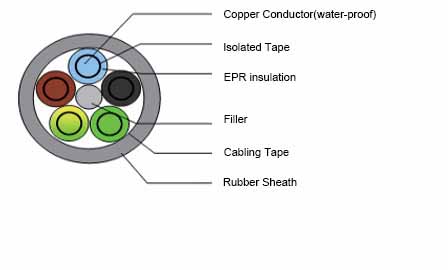

5Cores
