Cu PVC ( XLPE) Insulated PVC sheathed Control (Soft) Cable
|
Type： |
KVVR、KYJVR、KVVRP、KYJVRP、KVV、KYJV、KVVP(P2)(P3)、KYJVP(P2)(P3) |
|
Main Specification： |
KVVR、KYJVR：2～61 Cores、0.5～2.5mm²； KVVRP、KYJVRP：2～61 Cores、0.5～1.0mm²；2～48 Cores、1.5～2.5mm² KVV、KYJV、KVVP(P2)(P3)、KYJVP(P2)(P3)：2～61 Cores、0.75～2.5mm² ； 2～14 Cores、4～6mm²；2～10 Cores、10mm² |
|
Rated Voltage： |
0.6/1kV、450/750V |
|
Standard： |
Standard：GB/T 9330 |
|
Products Introduction： |
Apply to control, monitoring loop, protective circuit, etc. The long-term operating temp. of PVC insulated cable shall not exceed 70℃, and long-term operating temp. of XLPE insulated cable shall not exceed 90℃. The temp. shall not below 0℃ when laying. If it is below 0℃, pre-warming must be taken. Remarks: All the above types have structure of Flame-retardant/Refractory/Halogen-free Low Smoke Flame-retardant/Halogen-free Low Smoke Flame-retardant Refractory. Type of flame-retardant:ZA(B,C,D)-KVVR, ZA(B,C,D)-KYJVR, KVVRP, ZA(B,C,D)-KYJVRP, ZA(B,C,D)-KVV, ZA(B,C,D)-KYJV, ZA(B,C,D)-KVVP(P2)(P3), ZA(B,C,D)-KYJVP(P2)(P3). Type of refractory:NH-KVVR, NH-KYJVR, NH-KVVRP, NH-KYJVRP, NH-KVV, NH-KYJV, NH-KVVP(P2)(P3), NH-KYJVP(P2)(P3). |
|

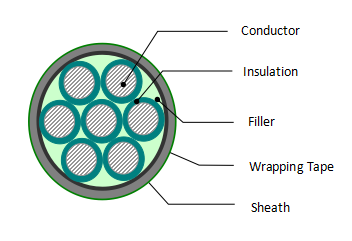

Cable Structure Drawing：
|
|
